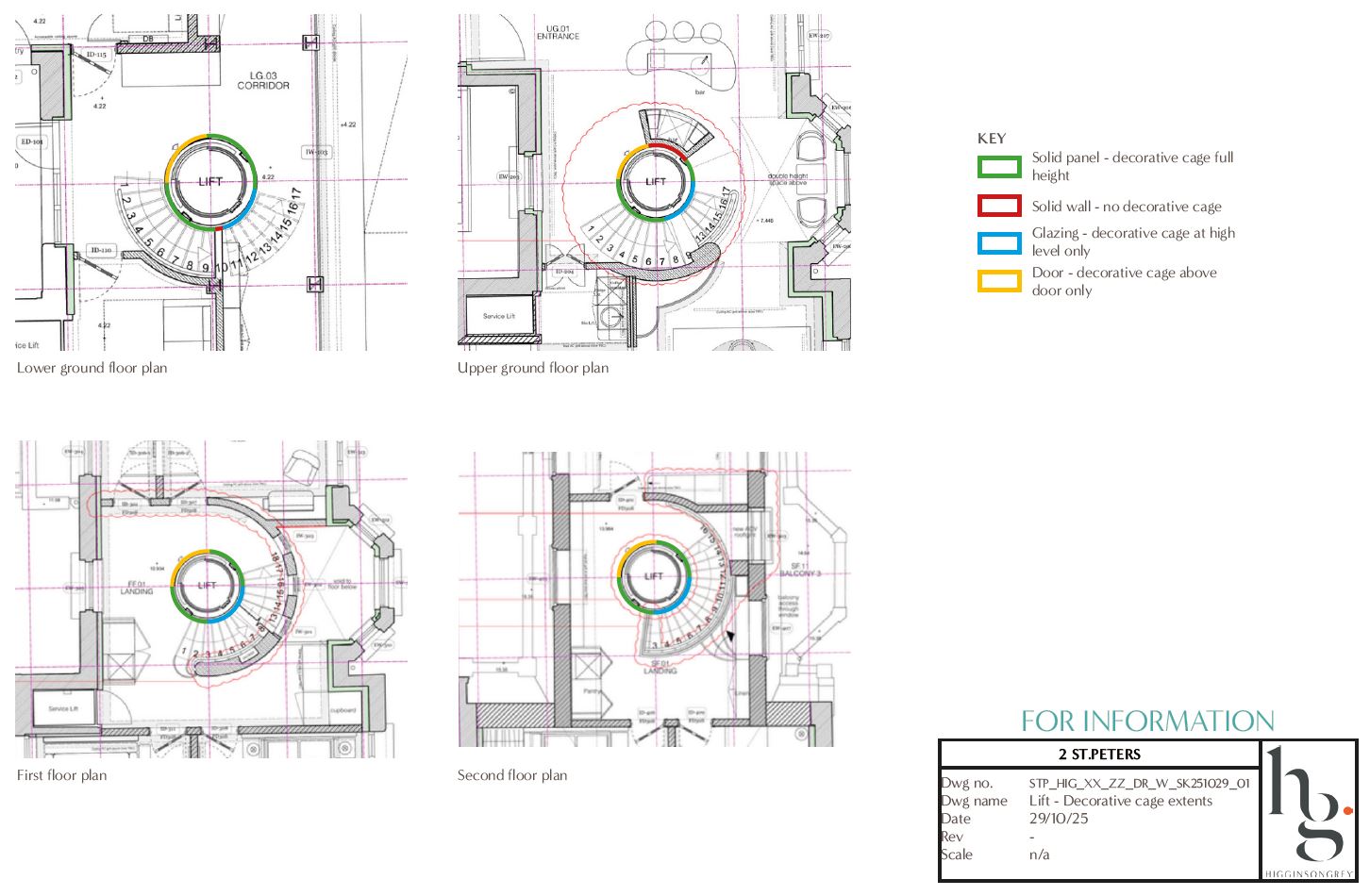

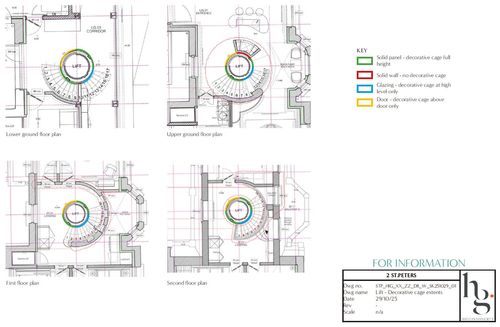

01) structure design -
4 collumn OPTION

(!) DOOR TRACKS SIT WITHIN THE INTERNAL RING OF THE STRUCTURE

ADVANTAGES

+ Meets Design intent by Murude giving a larger blank canvas for decorative metal
+ Significantly lower in value due to less materials, manufacturing complexity and installation time (reduction TBC)

DISADVANTAGES
‍
- If the 1650mm external cannot be increased cabin must be reduced by 50-80mm & door opening by 50mm (Premier technical reviewing best dimensional option) to maximise cabin and doors

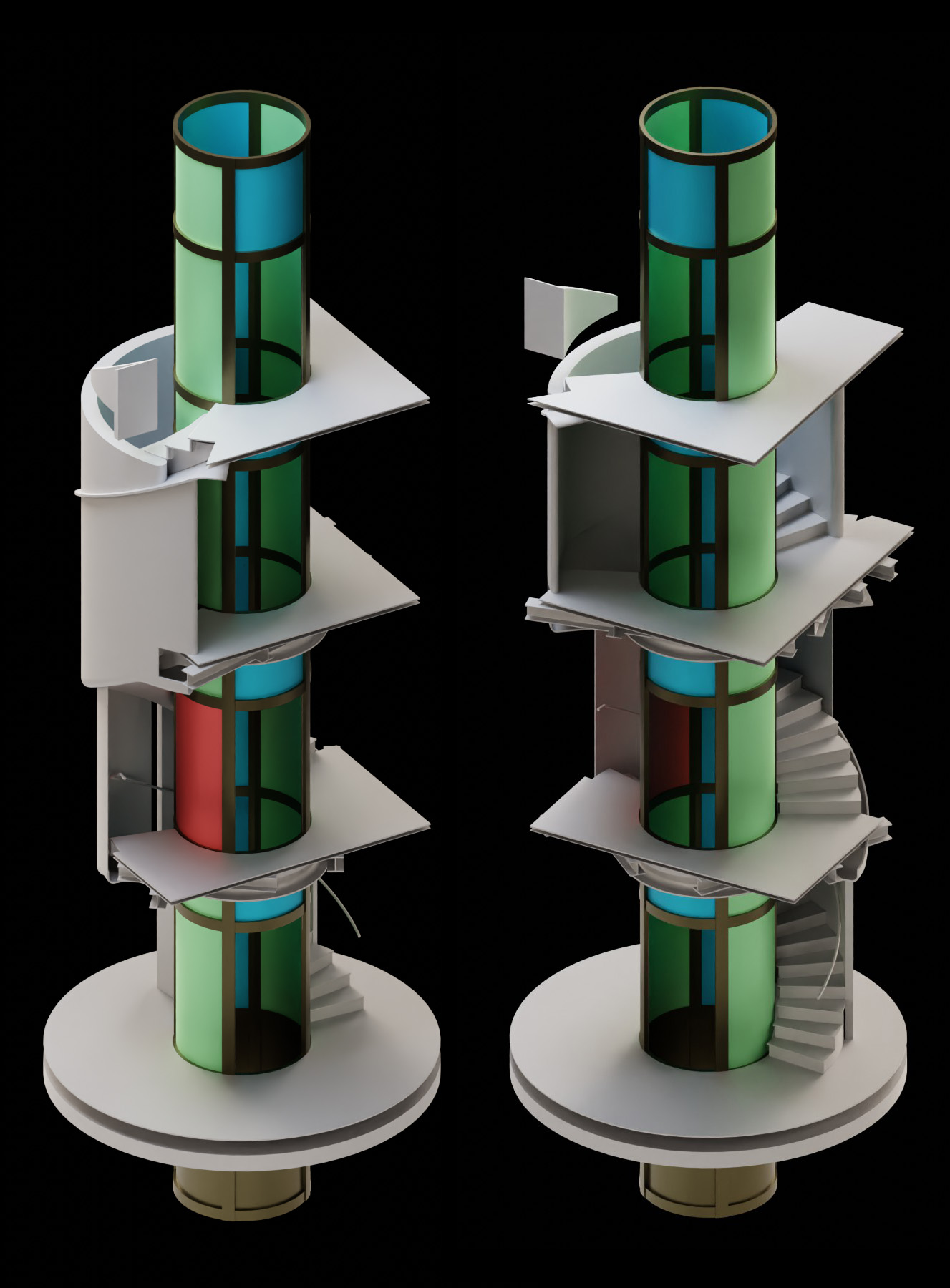

01) 4 collumn design GIVES MORE SPACE FOR CAGE AREA

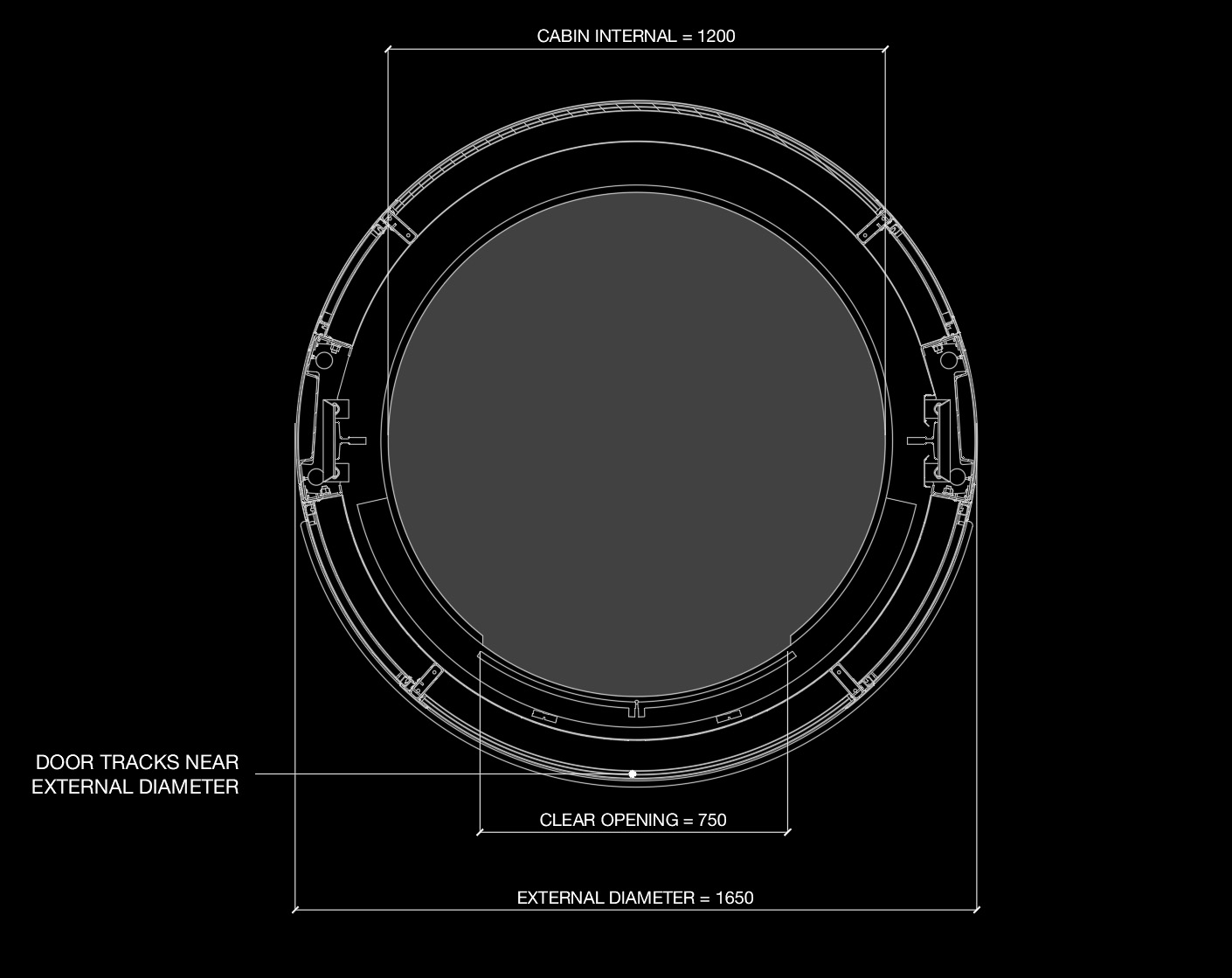

02) structure design - 6 collumn design

(!) DOOR TRACKS SIT NEAR THE EXTERNAL DIAMETER OF THE STRUCTURE

ADVANTAGES

+ Meets dimensional intent exactly 1650mm external, 1200mm internal cabin & 750mm doors.
+ Design used as reference in intial plans


DISADVANTAGES
‍
- Does not meet Murdude design intent as the 6 collumn design causes breaks in the structure, limiting span of the decorative metal
-  Significantly higher in value due to more materials, manufacturing complexity and installation time (cost provided to HG)
+ Finishes limited as primary steel used to form integrity is on the outer face powder-coating only

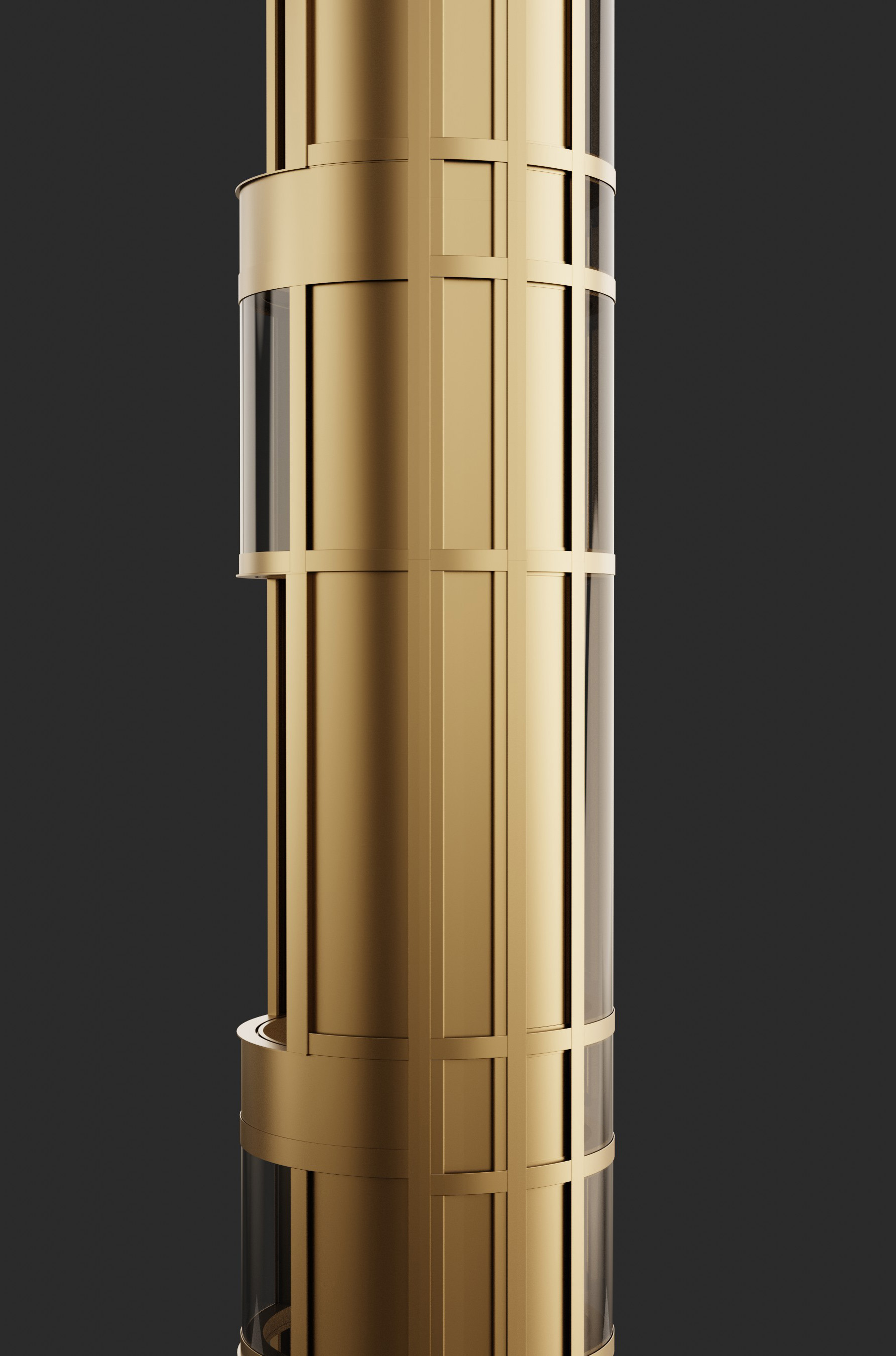

cabin design

Reference only to construction from previous project left and right sides will be solid.

manufacture

manufactured in italy
30 minutes from the centre of milan

installation

final result
